Optergy P442 Controller
Smarter control. Streamlined performance.

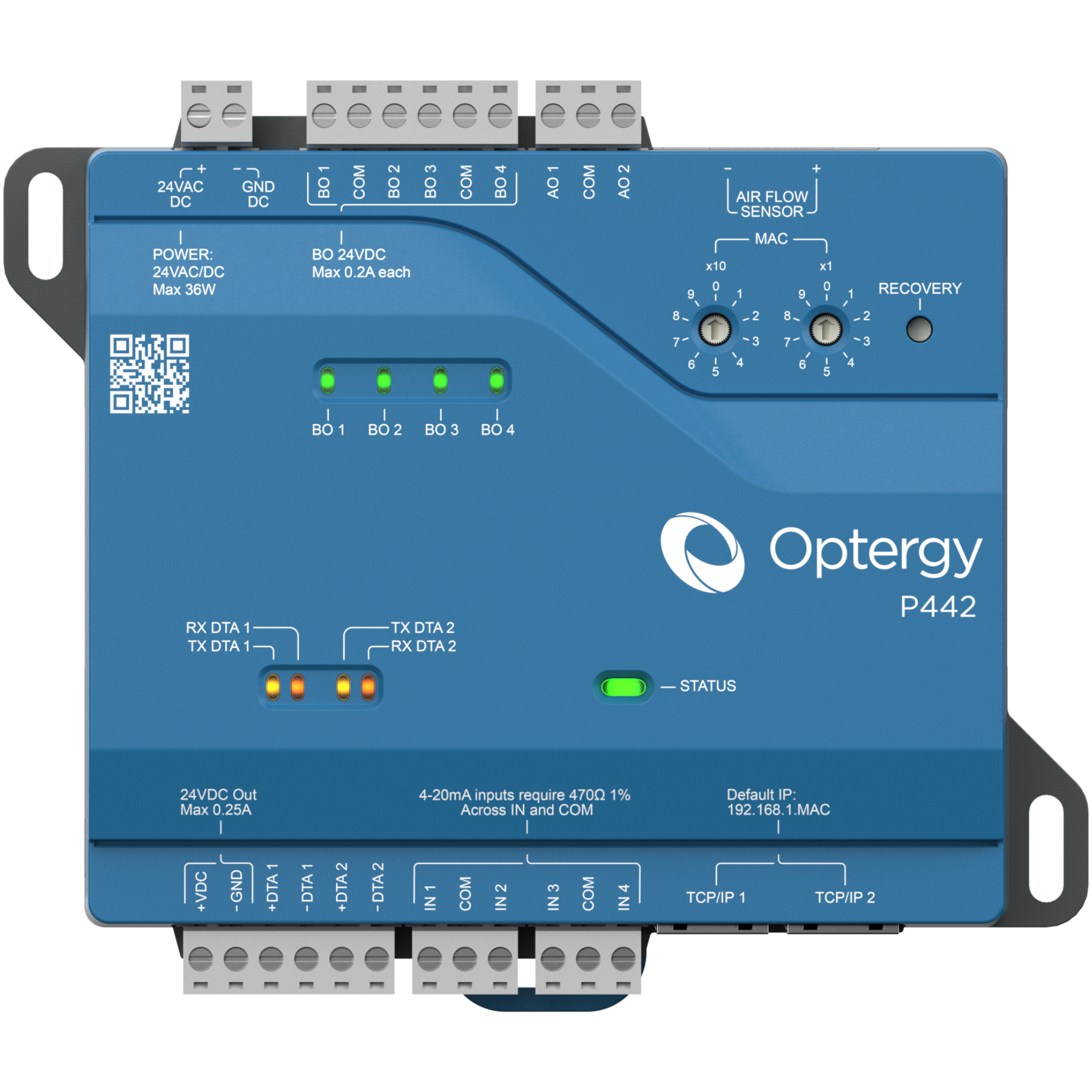

The Optergy Edge P442 is a high-efficiency, compact controller ideal for small-scale building automation and VAV systems. It features 4 universal inputs, 4 binary outputs, and 2 analog outputs, with options for airflow sensing. Supporting open protocols like BACnet IP, BACnet MS/TP, and Modbus, it ensures maximum flexibility. Configuration is easy via local web interface or REST API, with no licensing fees required. Seamless integration with Optergy Air sensors and touch interfaces adds to its versatility. The P442 is built for performance, reliability, and long-term value – making it a perfect solution for energy management and real-time environmental control
Optergy p442
How can we help you?
Reduce Complexity
With fewer parts the P442 is simpler and easier to deploy.
It can be configured with a web browser and by anyone.
Scalable
Need more inputs or outputs because your site is dynamic? The P442 can be expanded to up 8 times using a 864e Expansion IO module.
For end users, complex system components are hard to manage and often require skilled help to manage. Optergy P442 can be managed with a simple web browser and a password. No special manufacturer software needed. You are never locked out of your own system.
- User interface - Chrome browser (engineering)
- Open protocol configuration - BACnet/Modbus
- Input & output configuration
- Variable air volume (VAV) setup
- Programming logic
The P442 can be used in legacy BACnet systems, expanded to support new sensing elements or connected to IoT using a built-in REST API.
This controller supports connectivity with BACnet both as a programmable IP or MSTP controller but also as a router.
No other device supports as many features in a economical, compact and scalable way.
- BACnet and modbus connectivity
- Expansion inputs and outputs
- IoT gateway
